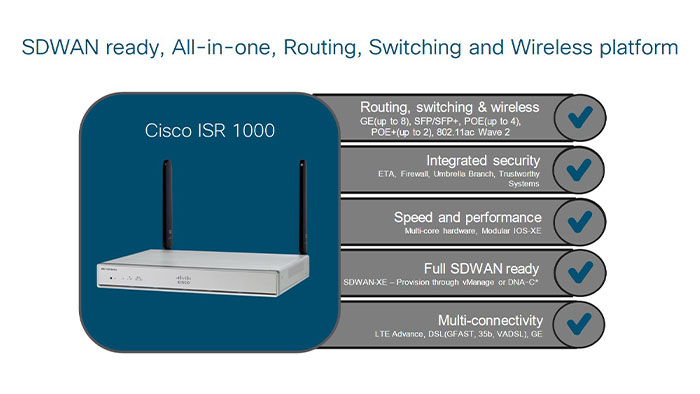

Cisco ISR 1000 Series

The 1000 Series ISRs support Power over local area network (PoE) and PoE+ to power branch devices like information processing phones and cameras. they’re simple to deploy with zero-touch provisioning mistreatment Plug and Play capability.

There is multiple computer network: LAN, WAN, LTE and WLAN mixtures to select on from, reckoning on your branch desires. The 1000 Series are often utilized in ATMs, retail stores, and kiosks, likewise as for numerous different functions. The Cisco 1000 Series ISR platform is best fitted to small and midsize businesses, enterprise branches, and as client premises instrumentation in managed services environments.

The Cisco 1000 Series ISRs are compatible for customer Premises instrumentation in enterprise branch offices, in ISP (Service provider) managed environments likewise as smaller from factor and M2M use cases. Cisco 1000 Series ISRs with Cisco IOS XE software mix internet access, comprehensive security, and wireless services (LTE Advanced 3.0 wireless WAN and 802.11ac wireless LAN) in a single, superior device.

The routers are simple to deploy and manage, with separate data and management plane capabilities. Cisco ISR 1000 routers are available 2 models: an 8-LAN-port choice and a 4-LAN-port choice. they need high performance with Gigabit Ether network packet forwarding capabilities. The multicore design has separate cores for data plane and control plane.

Also Cisco SD-WAN capability are often enabled on ISR 1000 platforms and The ISR 1000 Series supports Cisco Umbrella from IOS XE 16.6.3 and 16.7.2. This feature requires additional licensing. in addition, The ISR 1000 Series supports Mobility Express, supporting up to 50 access points and Cisco DNA Center supports the ISR 1000 Series.

Finally, IOS XE SD-WAN leverages Snort as an open-source network Intrusion Prevention System to perform real-time traffic analysis and generate alerts when threats are detected on IP networks. Within the Cisco SD-WAN solution, IPS is an on-box, on-prem feature which provides PCI compliance.

Cisco ISR 1000 Models

Cisco ISR 1000 router Provides up to 10 inbuilt 10/100/1000 Eth ports for WAN or LAN (C1100-8P: 2 WAN and 8 LAN ports, C1100-4P: two WAN and four LAN ports, C1101-4P: 1WAN and four LAN ports, C1109-2P M2M: 1 WAN and 2 LAN network ports, and C1109-4P M2M: 1 WAN and four LAN).

All C1100-8P and C1100-4P platforms model have one 10/100/1000 Eth port that can support SFP-based connectivity additionally to RJ-45 connections, enabling fiber or copper cable.

Depending on the platform, PoE/PoE+ are often enabled on Gigabit Ether interfaces (4 poet or two PoE+ ports on the one00-8P and a couple of PoE or 1 PoE+ ports on the C1100-4P), to supply power to external devices like video endpoints and 802.11ac access points (Not offered on C1101 and C1109 M2M smaller type factor models). Smaller type issue 1101-4P and 1109-4P with Cisco WAN LTE Pluggable technology choice. extra WAN choices like Cisco 12:1 High Speed Serial Pluggable.

You can find the C1100 models in the following figure. Along these models, C111x are the most popular within customers by supporting up to 350Mbps crypto bandwidth which can be used to stablish secure connection between branches.

ISR 1000 Features:

• Cisco IOS element software package
• LTE Advanced professional
• VDSL/ADSL2+
• 802.11ac Wave2 with quality specific
• Cisco SD-WAN Cisco Umbrella™, ETA (Encrypted Traffic Analytics)
• bigger crypto output
• Pluggable LTE modules
• Extended temperature support
• 8G DRAM/FLASH
• Perpetual and Subscription based mostly Licensing

Cisco ISR 1000 License

You can enable feature and store license files within the boot flash on your router. The ISR 1000 Series ships with the IP Base license by default and SEC and App licenses can be added later.

Additionally, there are two performance licenses; HSEC license and VPERF license. With the IP Base and SEC license, encrypted traffic is shaped at 50 Mbps. HSEC and VPERF. The HSEC will disable the shaper completely, whereas the VPERF will only lift up the bar on the shaper to 250 Mbps for the 8 LAN port SKUs, and to 150 Mbps for the 4 LAN port SKUs.

Customers can buy a combination of either SEC + VPERF or SEC + HSEC. the ISR 1000 Series supports Cisco ONE licenses.

An Evaluation license is auto change to a Right-to-use model after 60 days and this license is valid for permanently. The conversion to a permanent license applies solely to evaluation licenses. For different feature supported on your router, you need to purchase a permanent license.

Cisco ISR 1000 PLR License

Finally, all mentioned features, can be fully activated using Cisco ISR 1000 Permanent License Reservation. These offline licenses are perpetual and permanent. The license reservation solution is designed for highly secure environment which not inbound or outbound connections are allowed.

Note: All Smart licenses are only available using IOS XE software. However, by changing your device IOS mode to IOS XE SD-WAN, DNA subscriptions would be needed to enable more than 250Mbps crypto throughput on the edge platforms.

If you suppose that features and benefits of ISR 1000 can bring you satisfaction and you need support to reach this goal, our professionals can provide you enough information about the price and order in different ways.

Cisco ISR 1000 Order Pricing

If you want to find the latest features Cisco ISR 1000 suitable for your job, you can get details about the price and order by contacting our professionals via “order now” link.
